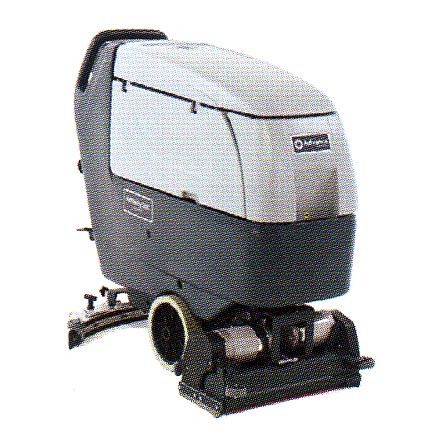

Traction Drive for Increased Productivity

The new Adfinity traction-drive scrubbers from Advance offers the size and performance you need. With a scrub path of 20 inches wide, of an onboard detergent dispensing system, you will get the highest level of cleaning productivity.

If you're looking for a scrubber that offers the most efficient use of cleaning chemicals, an Adfinity with AXP is your answer. Advance's patented AXP onboard detergent dispensing system eliminates guesswork by dispensing detergent at the manufacturer's. recommended dilution ratio. The Adfinity with AXP eliminates premixing of chemicals, which saves time and prevents detergent and water waste. The Adfinity comes standard with an onboard battery charger, allowing the flexibility to charge the machine at any available electrical outlet.

One-Touch operation makes the Adfinity easy to learn and easy to use, The Adfinity is equipped with forward and reverse traction drive and an ergonomic and safe paddle design for extra operator comfort. The Adfinity is designed for easy access to the battery, detergent dispensing system, and the recovery tank.

The Adfinity scrubber is available in 20 inch disc and cylindrical models.

Scrub Head Type Cylindrical with debris hopper
Deck Interchangeability All deck types interchangeable – ALL MODELS
Scrub Path Dual 20 in (50.8 cm) cylindrical brush system
Drive System 0.3 hp (200 W) variable forward and reverse Max speed 3.5 mph (5.6 km/hr), 16% gradeability – ALL MODELS
Max Productivity @ 3.0 mph (4.8 km/hr) 26,400 ft2 (2,453 m2 )
Scrub Pressure (2 settings) Floating 57 lb (26 kg) Locked –
Scrub Head Speed 570 rpm
Solution Flow Rates Smart Solutions™ 0.15 gal/min (0.55 L/min) – ALL MODELS
variable up to 0.3 gal/min (1.1 L/min) – ALL MODELS
Squeegee Width 29.9 in (75.9 cm)
Dimensions (w/o squeegee) L = 49.2 in (125 cm) W = 22.4 in (57 cm) H = 42.9 in (109 cm)
Weights Without batteries 247 lb (112 kg)
With batteries 362 lb (164 kg)
Voltage 24 V – ALL MODELS
Power Source (2) 12 V batteries (wet-acid and maintenance free available) – ALL MODELS
Onboard Battery Charger 24 V wet/maintenance free compatible – ALL MODELS
Solution Tank 14.5 gal (55 L) – ALL MODELS
Recovery Tank 14.5 gal (55 L) – ALL MODELS
Scrub Motor(s) (2) 0.54 hp (400 W)
Vacuum Motor 0.44 hp (330 W) – ALL MODELS
Sound Level 65.8 dB A at operator’s position – ALL MODELS
