INCREASED PRODUCTIVITY- INCREASED ECONOMY
The 200's larger, 20" cleaning path with increased battery capacity and large, 13 gallon solution/recovery tanks mean greater productivity and scrub ratios per hour- every time. And, because the 200 and 170 wet scrub and dry vacuum in one easy step, you'll save variable labor ad production costs.
Plus, now you can watch the dirt percolate.Minuteman's "Bubble-View" dome on top of the 200 assures you dirt and grit is being removed while the large squeegee recovers all the water, leaving the floor ready for immediate use.
ENHANCED SAFETY FEATURES
Both the 170 and 200 features protective circuit breakers which guard against thermo overload. Plus, an automatic water shut-off valve immediately turns the vacuum off when the recovery tank is full. Features such as these make Minuteman a leader in safety and efficiency.
DURABLE, RUGGED, CONSTRUCTION, CONVENIENT AND TRANSPORTABLE
Minuteman's hallmark rotational molded, polyethylene housing is non-corrosive and so durable that it almost indestructible. Minuteman's scrubber comes with a 7 year tank and 3 year parts warranty. Easily transportable, these compact scrubbers load into vans- the 170 even fits into a station wagon- for convenient transport.
STEP UP TO A COMPACT, WLAK-BEHIND SCRUBBER
Minuteman's scrubbers perform like precision skaters on ice- they never miss spot and can follow any edge. Take a closer look a champion today.
Scrub path: 20" (51 cm)
Squeegee Width: 33" (84 cm)
Coverage performance: 21,500 sq ft (1,998 m2)
Air flow: 67 cfm (1.9m3/min)
Vacuum(in. of water lift): 43" (1092 cm)
Drive: Brush driven
Input power: 24 volt
Batteries: 2-12V, 165 ah or 2-12V, 105 ah
Cord length: N/A
Brush motor: 3/4 hp (6 kw)
Vacuum motor: .5 hp (.4 kw)
Number of brushes: 1
Brush diameter: 20" (51 cm)
Brush speed: 250 rpm
Working speed: 0-215 ft/min (0-66 m/min)
Solution in Tank: 13 gallons (50 liters)
Recovery tank: 13 gallons (50 liter)
Dimensions (w/o squeegee): Length: 37" (94 cm)
Width: 21" (54 cm)
Height: 38" (97 cm)
Weight(w/o batteries): 197 lbs (89 kg)
Wheel diameter: Front- 3 1/2" (9cm)
Wheel diameter: Back- 8" (20.3 cm)

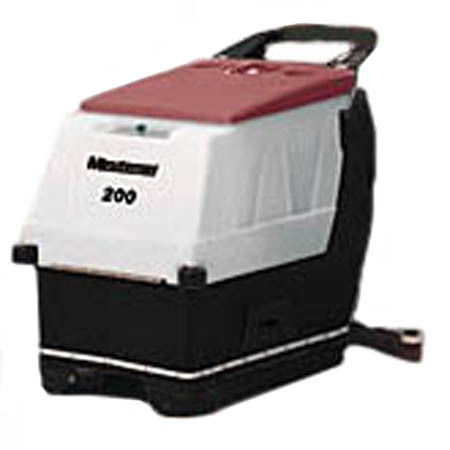

Minuteman 200 Parts and Support
minuteman's compact, walk behind 200 scrubber means greater productivity, efficiency and cleaning capabilities for smaller floors with tight areas. designed after minuteman's highly successful 17- scrubber, the 200 is perfect for heavy traffic spots that require repeated cleaning with maximum maneuverability in aisles, small rooms and other hard to clean areas. both machine are designed with hand controls within easy reach of the operator and feature a multi-position grip handle for greater operator comfort. these scrubbers also offer easy access to batteries and other electrical components by simply raising the solution/recovery tank.
increased productivity- increased economy
the 200's larger, 20" cleaning path with increased battery capacity and large, 13 gallon solution/recovery tanks mean greater productivity and scrub ratios per hour- every time. and, because the 200 and 170 wet scrub and dry vacuum in one easy step, you'll save variable labor ad production costs.
plus, now you can watch the dirt percolate.minuteman's "bubble-view" dome on top of the 200 assures you dirt and grit is being removed while the large squeegee recovers all the water, leaving the floor ready for immediate use.
enhanced safety features
both the 170 and 200 features protective circuit breakers which guard against thermo overload. plus, an automatic water shut-off valve immediately turns the vacuum off when the recovery tank is full. features such as these make minuteman a leader in safety and efficiency.
durable, rugged, construction, convenient and transportable
minuteman's hallmark rotational molded, polyethylene housing is non-corrosive and so durable that it almost indestructible. minuteman's scrubber comes with a 7 year tank and 3 year parts warranty. easily transportable, these compact scrubbers load into vans- the 170 even fits into a station wagon- for convenient transport.
step up to a compact, wlak-behind scrubber
minuteman's scrubbers perform like precision skaters on ice- they never miss spot and can follow any edge. take a closer look a champion today.
scrub path: 20" (51 cm)
squeegee width: 33" (84 cm)
coverage performance: 21,500 sq ft (1,998 m2)
air flow: 67 cfm (1.9m3/min)
vacuum(in. of water lift): 43" (1092 cm)
drive: brush driven
input power: 24 volt
batteries: 2-12v, 165 ah or 2-12v, 105 ah
cord length: n/a
brush motor: 3/4 hp (6 kw)
vacuum motor: .5 hp (.4 kw)
number of brushes: 1
brush diameter: 20" (51 cm)
brush speed: 250 rpm
working speed: 0-215 ft/min (0-66 m/min)
solution in tank: 13 gallons (50 liters)
recovery tank: 13 gallons (50 liter)
dimensions (w/o squeegee): length: 37" (94 cm)
width: 21" (54 cm)
height: 38" (97 cm)
weight(w/o batteries): 197 lbs (89 kg)
wheel diameter: front- 3 1/2" (9cm)
wheel diameter: back- 8" (20.3 cm)
increased productivity- increased economy
the 200's larger, 20" cleaning path with increased battery capacity and large, 13 gallon solution/recovery tanks mean greater productivity and scrub ratios per hour- every time. and, because the 200 and 170 wet scrub and dry vacuum in one easy step, you'll save variable labor ad production costs.
plus, now you can watch the dirt percolate.minuteman's "bubble-view" dome on top of the 200 assures you dirt and grit is being removed while the large squeegee recovers all the water, leaving the floor ready for immediate use.
enhanced safety features
both the 170 and 200 features protective circuit breakers which guard against thermo overload. plus, an automatic water shut-off valve immediately turns the vacuum off when the recovery tank is full. features such as these make minuteman a leader in safety and efficiency.
durable, rugged, construction, convenient and transportable
minuteman's hallmark rotational molded, polyethylene housing is non-corrosive and so durable that it almost indestructible. minuteman's scrubber comes with a 7 year tank and 3 year parts warranty. easily transportable, these compact scrubbers load into vans- the 170 even fits into a station wagon- for convenient transport.
step up to a compact, wlak-behind scrubber
minuteman's scrubbers perform like precision skaters on ice- they never miss spot and can follow any edge. take a closer look a champion today.
scrub path: 20" (51 cm)
squeegee width: 33" (84 cm)
coverage performance: 21,500 sq ft (1,998 m2)
air flow: 67 cfm (1.9m3/min)
vacuum(in. of water lift): 43" (1092 cm)
drive: brush driven
input power: 24 volt
batteries: 2-12v, 165 ah or 2-12v, 105 ah
cord length: n/a
brush motor: 3/4 hp (6 kw)
vacuum motor: .5 hp (.4 kw)
number of brushes: 1
brush diameter: 20" (51 cm)
brush speed: 250 rpm
working speed: 0-215 ft/min (0-66 m/min)
solution in tank: 13 gallons (50 liters)
recovery tank: 13 gallons (50 liter)
dimensions (w/o squeegee): length: 37" (94 cm)
width: 21" (54 cm)
height: 38" (97 cm)
weight(w/o batteries): 197 lbs (89 kg)
wheel diameter: front- 3 1/2" (9cm)
wheel diameter: back- 8" (20.3 cm)
