Brush Type: Disc
Scrub Path: 26 in (66 cm)
Max Productivity @ 3.2 mph: 36,600 ft2/hr (3,400 m2/hr)
Max Productivity @ 1.2 mph: 17,200 ft2/hr (1,598 m2/hr)
Run Time: 3-4.5 hours. (variable by battery size and scrubbing application) - ALL MODELS
Scrub Head Size: (2) 13 in (33 cm) brushes or pad holders
Voltage: 24V
Power Source: (4) 6V batteries (wet acid and gel cell available)- ALL MODELS
Onboard Battery Charger: 24V, 25 amp Wet/GEL- ALL MODELS
Brush Speed: 220 rpm
Brush Pressure: 70 lbs-100 lbs (32 kg-50 kg) variable by gas shock-DISC MODELS
Brush Motors: (2) 0.54 hp
Solution Control: Gravity feed, variable from 0.25 gal/min-1.0gal/min with ECO (Efficiency Calibrated Orifice) which allows over one full hour of scrub time on a single tank
Solution Tank: 21 gal (80 L)
Recovery Tank: 21 gal (80 L)
Vacuum Motor: 0.68 hp 3-stage
Sound Level: 66 dBA at operators position- ALL MODELS
Drive System: 0.27 hp variable forward and reverse, max speed = 3.2 mph (5.2 km/hr) , 10% gradeability- ALL MODELS
Dimensions (w/o squeegee): W= 27 in (69 cm) L=59 in (150 cm) H=42 in(107 cm)
Squeegee Width: 32 in (81 cm)
Weight: Machine only= 265 lbs )120 kg), with Max battery= 539 lb (245 kg), Machine Shipping Weight (batteries shipped separately)+ 350 lbs (159 kg)

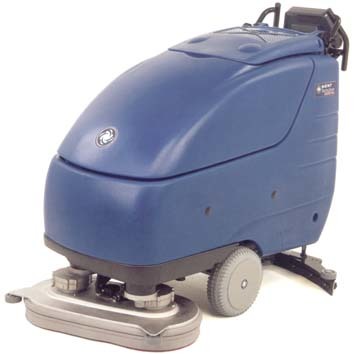

Kent (Nilfisk-Advance) RAZORPLUS 26D Parts and Support
the kent razor plus family consists of five models designed on a modular platform to allow tools-free exchange of scrub decks. three disc models (24d, 26d and 28d) are available featuring "click-off/click-on" scrub heads. the two cylindrical models (24c and 28c) have pre-sweeping capabilities. all models features 21 gallons solution and recovery capacity, variable scrub pressure, the industry's best sound level, and a standard onboard battery charger. additionally, the economically calibrated orifice (eco) system allows more than a full hour of productive scrubbing on a single refill/dump cycle. options include additional scrub decks for multiple applications, maintenance-free gel batteries, and multiple scrub brushes. the cumulative result is a level of innovative, flexibility, safety, performance, productivity, reliability, and value not previously experienced in walk-behind automatic scrubbers.
brush type: disc
scrub path: 26 in (66 cm)
max productivity @ 3.2 mph: 36,600 ft2/hr (3,400 m2/hr)
max productivity @ 1.2 mph: 17,200 ft2/hr (1,598 m2/hr)
run time: 3-4.5 hours. (variable by battery size and scrubbing application) - all models
scrub head size: (2) 13 in (33 cm) brushes or pad holders
voltage: 24v
power source: (4) 6v batteries (wet acid and gel cell available)- all models
onboard battery charger: 24v, 25 amp wet/gel- all models
brush speed: 220 rpm
brush pressure: 70 lbs-100 lbs (32 kg-50 kg) variable by gas shock-disc models
brush motors: (2) 0.54 hp
solution control: gravity feed, variable from 0.25 gal/min-1.0gal/min with eco (efficiency calibrated orifice) which allows over one full hour of scrub time on a single tank
solution tank: 21 gal (80 l)
recovery tank: 21 gal (80 l)
vacuum motor: 0.68 hp 3-stage
sound level: 66 dba at operators position- all models
drive system: 0.27 hp variable forward and reverse, max speed = 3.2 mph (5.2 km/hr) , 10% gradeability- all models
dimensions (w/o squeegee): w= 27 in (69 cm) l=59 in (150 cm) h=42 in(107 cm)
squeegee width: 32 in (81 cm)
weight: machine only= 265 lbs )120 kg), with max battery= 539 lb (245 kg), machine shipping weight (batteries shipped separately)+ 350 lbs (159 kg)
brush type: disc
scrub path: 26 in (66 cm)
max productivity @ 3.2 mph: 36,600 ft2/hr (3,400 m2/hr)
max productivity @ 1.2 mph: 17,200 ft2/hr (1,598 m2/hr)
run time: 3-4.5 hours. (variable by battery size and scrubbing application) - all models
scrub head size: (2) 13 in (33 cm) brushes or pad holders
voltage: 24v
power source: (4) 6v batteries (wet acid and gel cell available)- all models
onboard battery charger: 24v, 25 amp wet/gel- all models
brush speed: 220 rpm
brush pressure: 70 lbs-100 lbs (32 kg-50 kg) variable by gas shock-disc models
brush motors: (2) 0.54 hp
solution control: gravity feed, variable from 0.25 gal/min-1.0gal/min with eco (efficiency calibrated orifice) which allows over one full hour of scrub time on a single tank
solution tank: 21 gal (80 l)
recovery tank: 21 gal (80 l)
vacuum motor: 0.68 hp 3-stage
sound level: 66 dba at operators position- all models
drive system: 0.27 hp variable forward and reverse, max speed = 3.2 mph (5.2 km/hr) , 10% gradeability- all models
dimensions (w/o squeegee): w= 27 in (69 cm) l=59 in (150 cm) h=42 in(107 cm)
squeegee width: 32 in (81 cm)
weight: machine only= 265 lbs )120 kg), with max battery= 539 lb (245 kg), machine shipping weight (batteries shipped separately)+ 350 lbs (159 kg)
