Water tank: 12gal (45.4L)
Spray time: 12 min
Flow rate: 1gal/min (3.8L/min)
Pressure: 500 psi (34.5 bars)
Vac tank: 8gal (30.3L)
Dump hose length: 26 in (66 cm)
Vac motor lift: 130 in (330.2 cm)
Vac suction power: 112cfm (3,172 L/min)
HEPA blow feature: 300 mph (482.7 km/h)
HEPA filtered exhaust: yes - replaceable
Decibels: 69 dB
Molded-In chemical holder: gallon (1), quart (2)
Chemical switching: single/quick change
Safety cap system: yes
Metering tip settings: 5 settings
Vac hose: 50 ft (15.3 m)
Spray line: 45 ft (13.7 m)
Quick-connect gun: yes
Electric cord length: 25 ft (13.7 m)
Blow hose: 33 ft (10 m)
Removable engine compartment: yes - black box compartment
Weight: 93.5lbs (42.4 kg)
Dimensions, Length x Width x Height: 22 x 20 x 38 in (55.9 x 50.8 x 96.5 cm)
Hard rubber tires: 5 in (12.7 cm) (2)
Casters: 4 in (10.2 cm) (2)
Stair climbing wheels: yes
Volts (U.S.): 110V, 60Hz
Volts (Universal): 100-240V, 50-60Hz
Amps total: 14.5 amp
GFCI: yes
Run time hour meter: yes
Aluminum vacuum wand: yes
14 in squeegee head brush: yes
Blow nozzle: yes
Training materials: video and manual
Window squeegee: yes
Metering tip kit: yes
15 gallon tote bag: yes
Kaivac KAIVAC 1250 Parts and Support

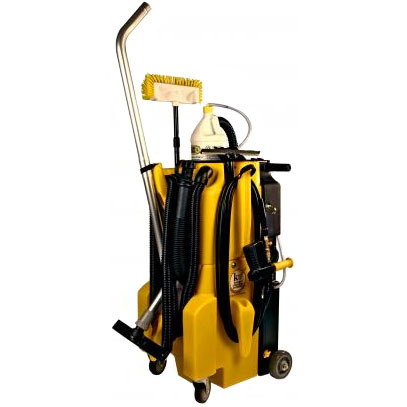

the kaivac 1250 is a corded, manually operated mobile cleaning station. built from the ground up for no-touch cleaning. light frame and maneuverability allows you to get where you need to go. the indoor power washer and powerful wet vacuum work in tandem for a complete cleaning solution.
water tank: 12gal (45.4l)
spray time: 12 min
flow rate: 1gal/min (3.8l/min)
pressure: 500 psi (34.5 bars)
vac tank: 8gal (30.3l)
dump hose length: 26 in (66 cm)
vac motor lift: 130 in (330.2 cm)
vac suction power: 112cfm (3,172 l/min)
hepa blow feature: 300 mph (482.7 km/h)
hepa filtered exhaust: yes - replaceable
decibels: 69 db
molded-in chemical holder: gallon (1), quart (2)
chemical switching: single/quick change
safety cap system: yes
metering tip settings: 5 settings
vac hose: 50 ft (15.3 m)
spray line: 45 ft (13.7 m)
quick-connect gun: yes
electric cord length: 25 ft (13.7 m)
blow hose: 33 ft (10 m)
removable engine compartment: yes - black box compartment
weight: 93.5lbs (42.4 kg)
dimensions, length x width x height: 22 x 20 x 38 in (55.9 x 50.8 x 96.5 cm)
hard rubber tires: 5 in (12.7 cm) (2)
casters: 4 in (10.2 cm) (2)
stair climbing wheels: yes
volts (u.s.): 110v, 60hz
volts (universal): 100-240v, 50-60hz
amps total: 14.5 amp
gfci: yes
run time hour meter: yes
aluminum vacuum wand: yes
14 in squeegee head brush: yes
blow nozzle: yes
training materials: video and manual
window squeegee: yes
metering tip kit: yes
15 gallon tote bag: yes
water tank: 12gal (45.4l)
spray time: 12 min
flow rate: 1gal/min (3.8l/min)
pressure: 500 psi (34.5 bars)
vac tank: 8gal (30.3l)
dump hose length: 26 in (66 cm)
vac motor lift: 130 in (330.2 cm)
vac suction power: 112cfm (3,172 l/min)
hepa blow feature: 300 mph (482.7 km/h)
hepa filtered exhaust: yes - replaceable
decibels: 69 db
molded-in chemical holder: gallon (1), quart (2)
chemical switching: single/quick change
safety cap system: yes
metering tip settings: 5 settings
vac hose: 50 ft (15.3 m)
spray line: 45 ft (13.7 m)
quick-connect gun: yes
electric cord length: 25 ft (13.7 m)
blow hose: 33 ft (10 m)
removable engine compartment: yes - black box compartment
weight: 93.5lbs (42.4 kg)
dimensions, length x width x height: 22 x 20 x 38 in (55.9 x 50.8 x 96.5 cm)
hard rubber tires: 5 in (12.7 cm) (2)
casters: 4 in (10.2 cm) (2)
stair climbing wheels: yes
volts (u.s.): 110v, 60hz
volts (universal): 100-240v, 50-60hz
amps total: 14.5 amp
gfci: yes
run time hour meter: yes
aluminum vacuum wand: yes
14 in squeegee head brush: yes
blow nozzle: yes
training materials: video and manual
window squeegee: yes
metering tip kit: yes
15 gallon tote bag: yes
