Water consumption, per rack: 0.8gal (3L)
Water consumption, per hour: 24/16gal (90/60L)
Operating cycle, wash time: 100/160sec
Operating cycle, rinse time: 15/15sec
Operating cycle, dwell: 5/5sec
Operating cycle, total cycle: 120/180sec
Operating capacity, per hour: 30/20 racks
Operating capacity, wash tank: 6.87gal (26L)
Water requirements, temperature: 140 deg F (60 deg C)
Water requirements, water inlet: 0.75 in (1.9 cm)
Water requirements, drain connection: 1 in (2.54 cm)
Water requirements, rinse pressure: 24 psi (1.65 bar)
Cycle temperatures, wash: 155-160 deg F (68-71 deg C)
Cycle temperatures, rinse: 180-195 deg F (82-90 deg C)
Dimensions, Length x Width x Height: 24 x 23 x 33 in (61 x 59.5 x 84.5 cm)
Dishrack dimensions: 19.75 x 19.75 in (50 x 50 cm)
Wash pump motor power: 0.75 hp (0.56 kW)
CMA Dishmachines Model UC50E Parts and Support

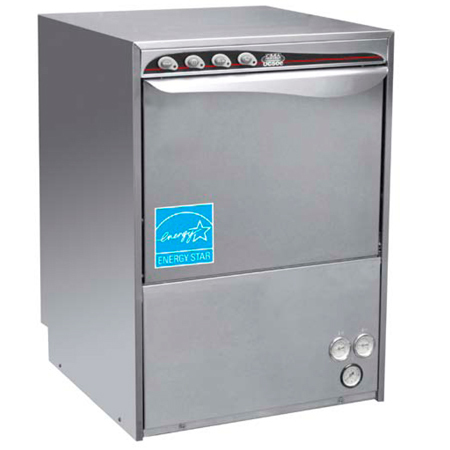

The CMA Dishmachines Model UC50e is a high temperature, undercounter dishwasher and glasswasher. Work safely with built in water level safety switches and booster safety thermostat. Reduce the risk of clogs with a triple filtering protection system.
Water consumption, per rack: 0.8gal (3L)
Water consumption, per hour: 24/16gal (90/60L)
Operating cycle, wash time: 100/160sec
Operating cycle, rinse time: 15/15sec
Operating cycle, dwell: 5/5sec
Operating cycle, total cycle: 120/180sec
Operating capacity, per hour: 30/20 racks
Operating capacity, wash tank: 6.87gal (26L)
Water requirements, temperature: 140 deg F (60 deg C)
Water requirements, water inlet: 0.75 in (1.9 cm)
Water requirements, drain connection: 1 in (2.54 cm)
Water requirements, rinse pressure: 24 psi (1.65 bar)
Cycle temperatures, wash: 155-160 deg F (68-71 deg C)
Cycle temperatures, rinse: 180-195 deg F (82-90 deg C)
Dimensions, Length x Width x Height: 24 x 23 x 33 in (61 x 59.5 x 84.5 cm)
Dishrack dimensions: 19.75 x 19.75 in (50 x 50 cm)
Wash pump motor power: 0.75 hp (0.56 kW)
Water consumption, per rack: 0.8gal (3L)
Water consumption, per hour: 24/16gal (90/60L)
Operating cycle, wash time: 100/160sec
Operating cycle, rinse time: 15/15sec
Operating cycle, dwell: 5/5sec
Operating cycle, total cycle: 120/180sec
Operating capacity, per hour: 30/20 racks
Operating capacity, wash tank: 6.87gal (26L)
Water requirements, temperature: 140 deg F (60 deg C)
Water requirements, water inlet: 0.75 in (1.9 cm)
Water requirements, drain connection: 1 in (2.54 cm)
Water requirements, rinse pressure: 24 psi (1.65 bar)
Cycle temperatures, wash: 155-160 deg F (68-71 deg C)
Cycle temperatures, rinse: 180-195 deg F (82-90 deg C)
Dimensions, Length x Width x Height: 24 x 23 x 33 in (61 x 59.5 x 84.5 cm)
Dishrack dimensions: 19.75 x 19.75 in (50 x 50 cm)
Wash pump motor power: 0.75 hp (0.56 kW)
