CFP PRO 20HD

68

• Parts
• Diagrams

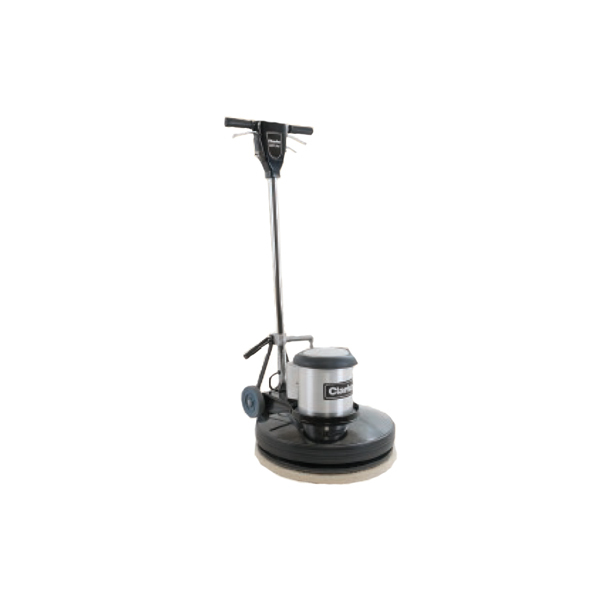

The CFP Pro 17HD and 20HD floor machines are rugged, high powered machines built for years of use in a wide range of applications. With easy-to-use fingertip controls and multiple safety features, such as handle-mounted safety switch, and 50 foot yellow cord, these all metal construction machines are designed for heavy duty use. The handle lock can be actuated by foot, and there is a convenient cord wrap for cord storage when not in use.

•All metal construction
•1.5 hp motor with all-steel triple planetary gearbox
•Pad driver included with universal clutch plate
•Easy-to-use, fingertip controls
•Safety lock-out switch

Deck Size 20 in (50.8 cm)
Pad Driver 19 in (48.3 cm)
Pad / Brush Speed 175 rpm
Voltage 110 V
Horsepower 1.5 hp (1.1 kW)
Motor, Heavy-duty 66-frame
Gear Box, All-steel Triple planetary
Sound Level 63 dB A
Power Cable, Safety Yellow 50 ft (15.2 m)
Wheels, Non-marking Grey Two 5 in (12.7 cm)
Amp Draw 13 amps
Weight 109 lb (49.4 kg)
Shipping Weight 123 lb (55.8 kg)
Dimensions (L x W x H) 27 x 20 x 48 in (65.6 x 51 x 122 cm)
