Side-by-side comparison tests using a gloss meter on a burnished floor show that the VS20 and 20UHSB produce a brighter shine than competitive battery burnishers.
One reason the VS20 and 20UHSB are so effective is the carefully balanced ratio of weight to pad speed, which produces a spectacular shine on a properly prepared floors. A fully floating pad holder follows uneven floor surfaces, for an even shine. Results are an even, beautiful shine that resists scuffing and wear.
Both models feature a special dust-control system that collects dust in dual collector bags. No need for dust mopping the floor after each burnishing, it's left clean and shiney.
The VS20 model features variable-speed drive to the wheels, for easy transport and working maneuverability. Self-propelling drive on the VS20 glides over the floor with minimal operator effort. Both models have simple controls for easy operation.
Motors: 2.5 hp, 36V DC
Propulsion Means: Permanent magnet drive motor
Batteries: (3) 185 amp hr/12V or (6) 238 amp hr/6V
Sound level: 68 db(A) at operator position
Pad holder: Permanently mounted, flexible, floats vertically and front to rear
Pad pressure: Fully adjustable
Pad speed (r.p.m): Varies with pressure/amp draw (2,500 no load, 2,000 under load)
Pad size: 20" (51 cm) diameter
Dust collection: (2) paper filter/collector bags mounted on specially designed dust control shroud/ pad housing, heavy-duty felt edging material seals/controls air flow
Length: 46" (117 cm)
Width: 25.5" (65 cm)
Height: 40" (102 cm)
Weight w/o batteries: 227 lbs (103 kg)
Weight w/3 x 185 amp hr batteries: 612 lbs. (278 kg)
Weight w/6 x 238 amp hr batteries: 652 lbs. (296 kg)
Shipping weight(machine only): 302 lbs. (137 kg)

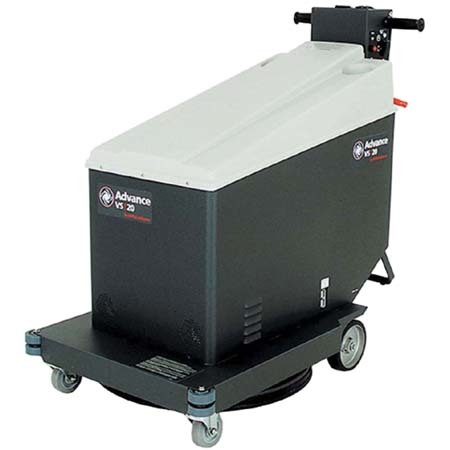

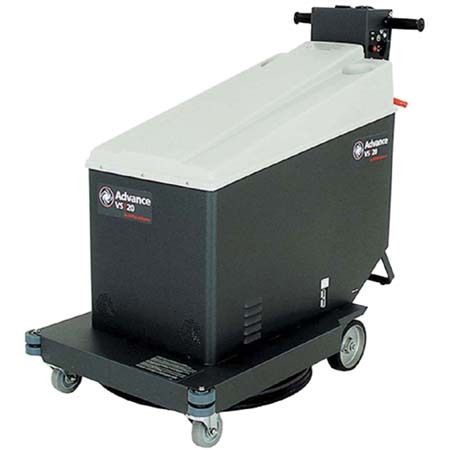

Nilfisk-Advance WHIRLAMATIC VS-20 Parts and Support
put a hard, high gloss shine on large-area floors in a hurry with the whirlamatic vs20 or 20uhsb battery-powered burnishers. these high production model shine a 20 inch(51cm) path at a rate of 27,000 square feet (2500m2) per hour, saving time and money.
side-by-side comparison tests using a gloss meter on a burnished floor show that the vs20 and 20uhsb produce a brighter shine than competitive battery burnishers.
one reason the vs20 and 20uhsb are so effective is the carefully balanced ratio of weight to pad speed, which produces a spectacular shine on a properly prepared floors. a fully floating pad holder follows uneven floor surfaces, for an even shine. results are an even, beautiful shine that resists scuffing and wear.
both models feature a special dust-control system that collects dust in dual collector bags. no need for dust mopping the floor after each burnishing, it's left clean and shiney.
the vs20 model features variable-speed drive to the wheels, for easy transport and working maneuverability. self-propelling drive on the vs20 glides over the floor with minimal operator effort. both models have simple controls for easy operation.
motors: 2.5 hp, 36v dc
propulsion means: permanent magnet drive motor
batteries: (3) 185 amp hr/12v or (6) 238 amp hr/6v
sound level: 68 db(a) at operator position
pad holder: permanently mounted, flexible, floats vertically and front to rear
pad pressure: fully adjustable
pad speed (r.p.m): varies with pressure/amp draw (2,500 no load, 2,000 under load)
pad size: 20" (51 cm) diameter
dust collection: (2) paper filter/collector bags mounted on specially designed dust control shroud/ pad housing, heavy-duty felt edging material seals/controls air flow
length: 46" (117 cm)
width: 25.5" (65 cm)
height: 40" (102 cm)
weight w/o batteries: 227 lbs (103 kg)
weight w/3 x 185 amp hr batteries: 612 lbs. (278 kg)
weight w/6 x 238 amp hr batteries: 652 lbs. (296 kg)
shipping weight(machine only): 302 lbs. (137 kg)
side-by-side comparison tests using a gloss meter on a burnished floor show that the vs20 and 20uhsb produce a brighter shine than competitive battery burnishers.
one reason the vs20 and 20uhsb are so effective is the carefully balanced ratio of weight to pad speed, which produces a spectacular shine on a properly prepared floors. a fully floating pad holder follows uneven floor surfaces, for an even shine. results are an even, beautiful shine that resists scuffing and wear.
both models feature a special dust-control system that collects dust in dual collector bags. no need for dust mopping the floor after each burnishing, it's left clean and shiney.
the vs20 model features variable-speed drive to the wheels, for easy transport and working maneuverability. self-propelling drive on the vs20 glides over the floor with minimal operator effort. both models have simple controls for easy operation.
motors: 2.5 hp, 36v dc
propulsion means: permanent magnet drive motor
batteries: (3) 185 amp hr/12v or (6) 238 amp hr/6v
sound level: 68 db(a) at operator position
pad holder: permanently mounted, flexible, floats vertically and front to rear
pad pressure: fully adjustable
pad speed (r.p.m): varies with pressure/amp draw (2,500 no load, 2,000 under load)
pad size: 20" (51 cm) diameter
dust collection: (2) paper filter/collector bags mounted on specially designed dust control shroud/ pad housing, heavy-duty felt edging material seals/controls air flow
length: 46" (117 cm)
width: 25.5" (65 cm)
height: 40" (102 cm)
weight w/o batteries: 227 lbs (103 kg)
weight w/3 x 185 amp hr batteries: 612 lbs. (278 kg)
weight w/6 x 238 amp hr batteries: 652 lbs. (296 kg)
shipping weight(machine only): 302 lbs. (137 kg)
