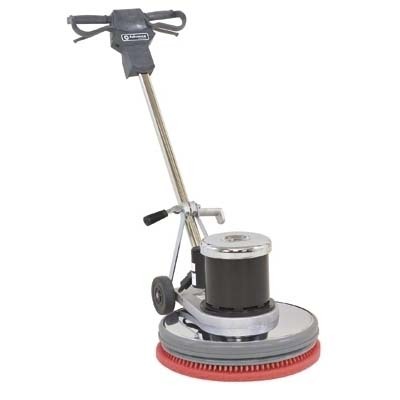

Whether stripping, scrubbing, screening, or bonnet cleaning, the Advance Pacesetter line of floor machines has a model to fit your needs and applications. Each of the four Pacesetter models is built with an all cast metal, chrome plated base. The heavy-duty construction and durability of the Pacesetter sets it above the competition.

All Pacesetter models have an ergonomic molded handle that protects the user's hands during operation along walls and around corners. A red safety-lock switch allows the operator to easily control when the machine goes into operation. An easy-to-use compression style lever changes the height adjustment of the handle for all operators. Pad holders are standard on the Pacesetter, and the yellow, super-flex cord offers ease in cord handling and reduced tangling. A clear plastic hospital plug allows the operator to verify the electrical integrity of the
connection at each use of the machine.

The Pacesetter 13/17/20 is a 1.0 hp, 175 rpm machine available in 13, 17 and 20 inch sizes. Dual capacitors provide an extra burst of power to the machine when needed for start-up or during operation, without overloading the electrical circuits in the facility.

Pad/Brush size: 17 in(43.2 cm)
Motor Horsepower: 1.00 hp AC
Frame size: 66
Motor amps: 12.6 A
Capacitors: Dual, start and run
Motor voltage: 120V
Revolutions per minute: 175 rpm
Transmission: Dual planetary gears- all metal
Clutch plate: NP 92 (industry standard)
Body construction: All steel with chrome plated bell housing and handle shaft with compression style handle height adjustment. Includes rubber wheels for transportation- ALL MODELS
Machine weight: 90lb (41 kg)
Power cord:
Length: 50ft/15/25m- ALL MODELS
Type: Safety yellow super-flex with hospital grade plug- ALL MODELS
Operator handle: Comfortable and solid handle with safety interlock activation preventing accidental start up- ALL MODELS
Noise level: 65 dbA
