LV30

• Parts
• Diagrams
• Docs

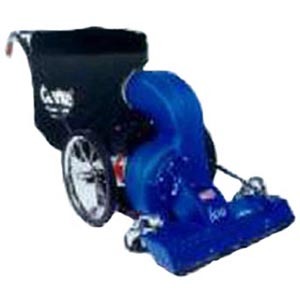

The LV-30 Litter Vac is powered by a 6hp gasoline and generates 900 CFM to handle the toughest cleaning jobs. This commercial vacuum cleaner can clean debris from large indoor and outdoor areas. The LV-30 is designed for uneven terrain and with a hose and wand attachment its versatility is greatly enhanced.

•Large 11 cu. ft. bag with side zipper disposal system
•Non-rusting fan housing allows easy passage of debris to bag
•Heavy duty impeller picks up bottles, cans, washers, sticks, leaves.
•Large wheel allows the LV-30 to traverse rough terrain, curbs, and gutters
•Powered by an industrial 5.5 HP Tecumseh or Honda Engine with low oil shut-off
•Large adjustable up-down front swivel casters
•Trap door allows large debris to pass into the vacuum chamber

Power Source 5.5 HP Tecumseh or Honda recoil start
Cleaning Path Bag/Hopper Capacity 30" path, bag holds (76.2 cm) 11 cu. ft. (.31 cu. meter)
Frame Steel & Polydur
Dimensions 75" L x 41½" H 190.5 cm x 76.8 cm x 105.4 cm Weight 167 lbs. (75.8k)
Shipping Weight 194 lbs. (88.0k)
