Tennant 5680 Parts and Support

5680

Shopping for Equipment?

Contact our Experts

Need help finding parts?

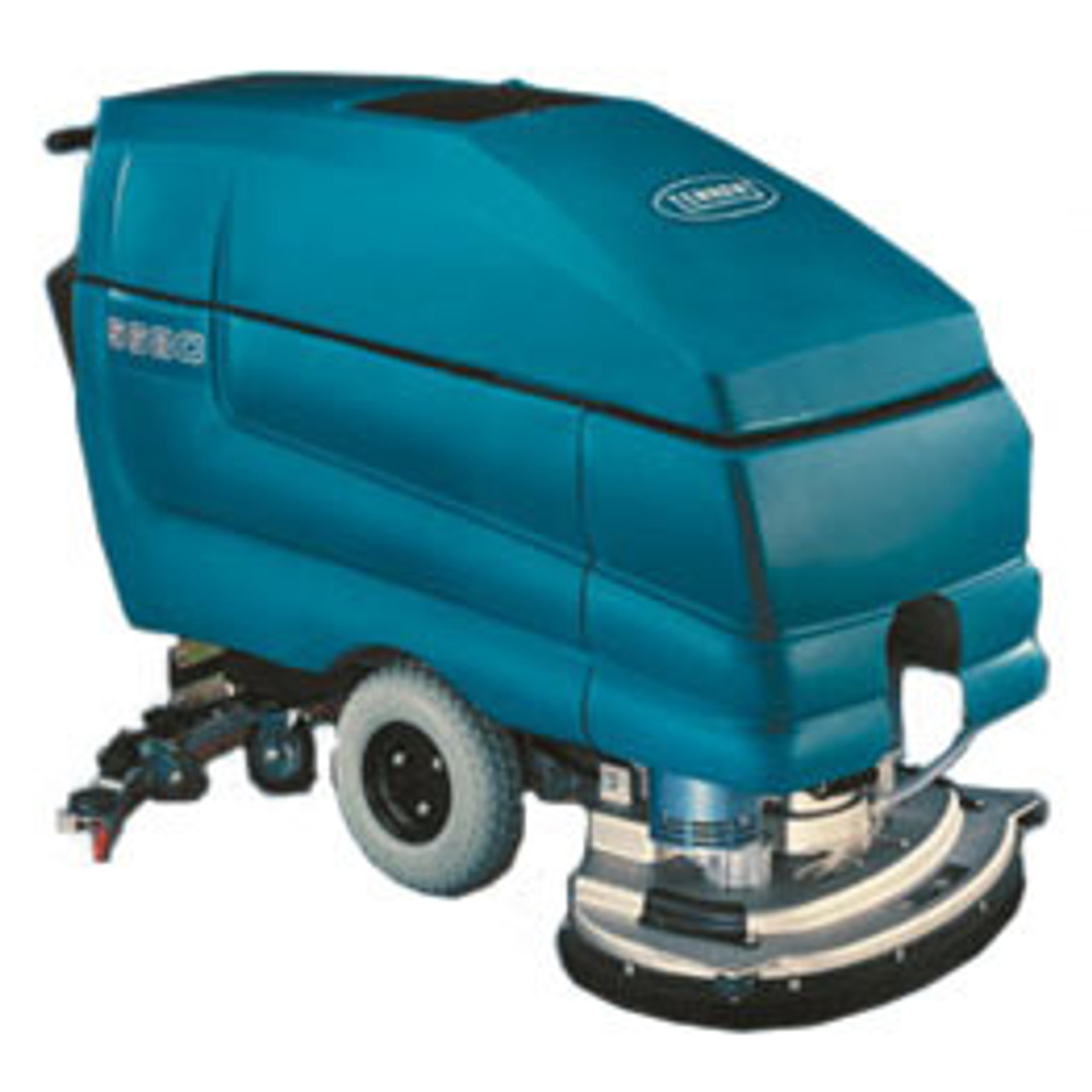

Ask our Team The Tennant 5680 is a battery-powered walk-behind autoscrubber. Thanks to the built-in technology of ec-H2O and FaST, you save on both water usage and refill times. Training times are also cut down thanks to the Quick-Train control panel. A corrosion-resistant scrub deck and durable composite frame will ensure that the 5680 will be ready and waiting for your next cleaning project.

Working widths: 28 in (70 cm), 32 in (80 cm), 36 in (90 cm)
Productivity per hour (theoretical max): 33,320 sq ft (3,095 sq m) (28 in), 38,080 sq ft (3,540 sq m) (32 in), 42,840 sq ft (3,980 sq m) (36 in)
Productivity per hour (estimated coverage, conventional): 20,800 sq ft (1,930 sq m) (28 in), 24,000 sq ft (2,230 sq m) (32 in), 27,200 sq ft (2,530sq m) (36 in)
Productivity per hour (estimated coverage, ec-H20 / FaST): 23,400 sq ft (2,175 sq m) (28 in), 27,000 sq ft (2,510 sq m) (32 in), 30,600 sq ft (2,845 sq m) (36 in)
Brush motors: 0.75 hp (2)
Brush/pad speed: 200 rpm (disc), 750rpm (cylindrical)
Brush/pad pressure: 100lbs & 200lbs (45.4 kg & 90.7 kg) (disc), 85lbs (38.6 kg) (cylindrical)
Solution tank capacity: 30 gal (114 L)
Solution flow rate, conventional: 0-1.5 gal/min (5.7 L/min)
Solution flow rate, FaST: 0.22 gal/min (0.8 L/min)
Solution flow rate, ec-H2O: 0.22 gal/min (0.83 L/min) (28 in), 0.33 gal/min (1.25 L/min) (32 in), 0.44 gal/min (1.66 L/min) (36 in)
Recovery tank capacity: 40 gal (151 L)
Vacuum motor power: 0.8 hp (3-stage)
Vacuum motor speed: 65 cu ft/min (1.84 cu m/min)
Vacuum motor sealed water-lift: 73 in (185.4 cm)
System voltage: 36V
Battery amp hour rating, Standard: 240aH @ 20hr
Battery amp hour rating, Optional: 360aH @ 20hr
Battery run time (continuous cleaning rating): 3.5hrs (240aH), 4.5hrs (360aH)
Length: 64 in (162.5 cm) (disc), 63 in (160 cm) (cylindrical)
Width without squeegee: 30 in (76.2 cm) (28 in), 34 in (86.4 cm) (32 in), 38 in (96.5 cm) (36 in)
Width with squeegee: 37.5 in (95 cm) (28 in), 42 in (107 cm) (32 in), 45.5 in (116 cm) (36 in)
Height: 43 in (109 cm)
Weight with batteries: 805lbs (365kg)

Documentation

Tennant 5680 Parts and Support

5680

Shopping for Equipment?

Contact our Experts

Need help finding parts?

Ask our Team
The Tennant 5680 is a battery-powered walk-behind autoscrubber. Thanks to the built-in technology of ec-H2O and FaST, you save on both water usage and refill times. Training times are also cut down thanks to the Quick-Train control panel. A corrosion-resistant scrub deck and durable composite frame will ensure that the 5680 will be ready and waiting for your next cleaning project.

Working widths: 28 in (70 cm), 32 in (80 cm), 36 in (90 cm)
Productivity per hour (theoretical max): 33,320 sq ft (3,095 sq m) (28 in), 38,080 sq ft (3,540 sq m) (32 in), 42,840 sq ft (3,980 sq m) (36 in)
Productivity per hour (estimated coverage, conventional): 20,800 sq ft (1,930 sq m) (28 in), 24,000 sq ft (2,230 sq m) (32 in), 27,200 sq ft (2,530sq m) (36 in)
Productivity per hour (estimated coverage, ec-H20 / FaST): 23,400 sq ft (2,175 sq m) (28 in), 27,000 sq ft (2,510 sq m) (32 in), 30,600 sq ft (2,845 sq m) (36 in)
Brush motors: 0.75 hp (2)
Brush/pad speed: 200 rpm (disc), 750rpm (cylindrical)
Brush/pad pressure: 100lbs & 200lbs (45.4 kg & 90.7 kg) (disc), 85lbs (38.6 kg) (cylindrical)
Solution tank capacity: 30 gal (114 L)
Solution flow rate, conventional: 0-1.5 gal/min (5.7 L/min)
Solution flow rate, FaST: 0.22 gal/min (0.8 L/min)
Solution flow rate, ec-H2O: 0.22 gal/min (0.83 L/min) (28 in), 0.33 gal/min (1.25 L/min) (32 in), 0.44 gal/min (1.66 L/min) (36 in)
Recovery tank capacity: 40 gal (151 L)
Vacuum motor power: 0.8 hp (3-stage)
Vacuum motor speed: 65 cu ft/min (1.84 cu m/min)
Vacuum motor sealed water-lift: 73 in (185.4 cm)
System voltage: 36V
Battery amp hour rating, Standard: 240aH @ 20hr
Battery amp hour rating, Optional: 360aH @ 20hr
Battery run time (continuous cleaning rating): 3.5hrs (240aH), 4.5hrs (360aH)
Length: 64 in (162.5 cm) (disc), 63 in (160 cm) (cylindrical)
Width without squeegee: 30 in (76.2 cm) (28 in), 34 in (86.4 cm) (32 in), 38 in (96.5 cm) (36 in)
Width with squeegee: 37.5 in (95 cm) (28 in), 42 in (107 cm) (32 in), 45.5 in (116 cm) (36 in)
Height: 43 in (109 cm)
Weight with batteries: 805lbs (365kg)

Manuals & Diagrams
The Tennant 5680 is a battery-powered walk-behind autoscrubber. Thanks to the built-in technology of ec-H2O and FaST, you save on both water usage and refill times. Training times are also cut down thanks to the Quick-Train control panel. A corrosion-resistant scrub deck and durable composite frame will ensure that the 5680 will be ready and waiting for your next cleaning project.

Working widths: 28 in (70 cm), 32 in (80 cm), 36 in (90 cm)
Productivity per hour (theoretical max): 33,320 sq ft (3,095 sq m) (28 in), 38,080 sq ft (3,540 sq m) (32 in), 42,840 sq ft (3,980 sq m) (36 in)
Productivity per hour (estimated coverage, conventional): 20,800 sq ft (1,930 sq m) (28 in), 24,000 sq ft (2,230 sq m) (32 in), 27,200 sq ft (2,530sq m) (36 in)
Productivity per hour (estimated coverage, ec-H20 / FaST): 23,400 sq ft (2,175 sq m) (28 in), 27,000 sq ft (2,510 sq m) (32 in), 30,600 sq ft (2,845 sq m) (36 in)
Brush motors: 0.75 hp (2)
Brush/pad speed: 200 rpm (disc), 750rpm (cylindrical)
Brush/pad pressure: 100lbs & 200lbs (45.4 kg & 90.7 kg) (disc), 85lbs (38.6 kg) (cylindrical)
Solution tank capacity: 30 gal (114 L)
Solution flow rate, conventional: 0-1.5 gal/min (5.7 L/min)
Solution flow rate, FaST: 0.22 gal/min (0.8 L/min)
Solution flow rate, ec-H2O: 0.22 gal/min (0.83 L/min) (28 in), 0.33 gal/min (1.25 L/min) (32 in), 0.44 gal/min (1.66 L/min) (36 in)
Recovery tank capacity: 40 gal (151 L)
Vacuum motor power: 0.8 hp (3-stage)
Vacuum motor speed: 65 cu ft/min (1.84 cu m/min)
Vacuum motor sealed water-lift: 73 in (185.4 cm)
System voltage: 36V
Battery amp hour rating, Standard: 240aH @ 20hr
Battery amp hour rating, Optional: 360aH @ 20hr
Battery run time (continuous cleaning rating): 3.5hrs (240aH), 4.5hrs (360aH)
Length: 64 in (162.5 cm) (disc), 63 in (160 cm) (cylindrical)
Width without squeegee: 30 in (76.2 cm) (28 in), 34 in (86.4 cm) (32 in), 38 in (96.5 cm) (36 in)
Width with squeegee: 37.5 in (95 cm) (28 in), 42 in (107 cm) (32 in), 45.5 in (116 cm) (36 in)
Height: 43 in (109 cm)
Weight with batteries: 805lbs (365kg)

  • ships same day
    OEM
    4039826 - Front tank gasket 175-2267

    Front tank gasket 175-2267

    SKU: 175-2267
    $57.86
    Specifications:Weight: 0.235 poundsMatches:2221204039826ASKT003Alternative items:Below are other options that may meet your needs.Front tank gasket$46.01991-3026GASKET-TANK,FRONT$41.35993-0405Commonly purchased together:May fit on these models - select...
    $57.86
  • ships same day
    OEM
    222121 - Rear tank gasket 175-2268

    Rear tank gasket 175-2268

    SKU: 175-2268
    $51.48
    Specifications:Weight: 0.21 poundsMatches:2221214039828ASKT004Alternative items:Below are other options that may meet your needs.GASKET TANK REAR$34.50993-1693Rear tank gasket$38.30991-3027Commonly purchased together:May fit on these models - select...
    $51.48
  • OEM
    4016535 - Hinge weldment 275-0681

    Hinge weldment 275-0681

    SKU: 275-0681
    $40.48
    Specifications:Weight: 0.21 poundsMatches:398485401653586733240Commonly purchased together:May fit on these models - select model and diagram to confirmTennant 5680Tennant 5700 SERIES
    $40.48
  • ships same day
    OEM
    56373054 - Fuse assembly 372-1254

    Fuse assembly 372-1254

    SKU: 372-1254
    $34.23
    Matches:08774S0877608776S162-1102162-5001162-5020170-1592172-8303202-1371275-5201342837305437307142704A56373054563730717-244F912382P-8776Alternative items:Below are other options that may meet your needs.FUSE-LESTER,56373054$41.40993-0623Commonly...
    $34.23
  • OEM
    1006415 - Hose 1/4 x 3 foot 175-5305

    Hose 1/4 x 3 foot 175-5305

    SKU: 175-5305
    $47.18
    Specifications:Length: 37 in Width: 0.4 in Weight: 0.139 poundsInside Diameter: 0.25 INOutside Diameter: 0.4 INLength: 37 INUsed for: SolutionConstruction Type: StandardMaterial: RubberColor: ClearMatches:100641586876910Commonly purchased...
    $47.18
  • OEM
    222403 - Wheel 175-2245

    Wheel 175-2245

    SKU: 175-2245
    $10.78
    Specifications:Weight: 0.141 poundsType: FixedColor: GrayMatches:2224034040294Alternative items:Below are other options that may meet your needs.2 inch wheel$8.37991-3044BUMPER WHEEL 2 x 7/8 inch$7.84993-0101Commonly purchased together:Fits on:Tennant...
    $10.78
  • ships same day
    OEM
    4037084 - Bronze flanged bushing 175-2330

    Bronze flanged bushing 175-2330

    SKU: 175-2330
    $6.82
    Specifications:Weight: 0.049 poundsMatches:2228684037084Commonly purchased together:Fits on:Tennant 5680Tennant 5700 SERIES
    $6.82
  • OEM
    4040208 - Cable 175-2294

    Cable 175-2294

    SKU: 175-2294
    $37.73
    Specifications:Weight: 0.168 poundsMatches:2222274040208QL222227Commonly purchased together:Fits on:Tennant 5680Tennant 5700 SERIES
    $37.73
  • OEM
    4039843 - Squeegee lift linkage 175-2280

    Squeegee lift linkage 175-2280

    SKU: 175-2280
    $18.59
    Specifications:Weight: 0.388 poundsMatches:222139403984386666010Commonly purchased together:Fits on:Tennant 5680Tennant 5700 SERIES
    $18.59
  • OEM
    4029640 - Compression spring 175-2203

    Compression spring 175-2203

    SKU: 175-2203
    $5.72
    Specifications:Weight: 0.002 poundsMatches:40296405788986666040Commonly purchased together:Fits on:Tennant 5680Tennant 5700 SERIESTennant POWER SWEEPER 186Tennant 1186ETennant 8400D
    $5.72
  • OEM
    4012505 - ec-H20 module (OBSOLETE) 275-9935

    ec-H20 module (OBSOLETE) 275-9935

    SKU: 275-9935
    Call for availability
    Specifications:Weight: 4.418 poundsMatches:275-4749275-59314012505880976209004561900616190062699007970Commonly purchased together:May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Nobles SS5Tennant T7Tennant T5Nobles...
    $856.21
  • OEM
    1062813 - Logo decal (Tennant Industrial) 275-9896

    Logo decal (Tennant Industrial) 275-9896

    SKU: 275-9896
    $61.12
    Specifications:Weight: 0.011 poundsMatches:10628134035178Commonly purchased together:May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Tennant T7Tennant T5Nobles SPEED SCRUB RIDERTennant 5700 SERIESTennant T5 ETennant...
    $61.12
  • OEM
    4016342 - Straight plastic fitting (Tennant Industrial) 275-8710

    Straight plastic fitting (Tennant Industrial) 275-8710

    SKU: 275-8710
    $10.02
    Specifications:Weight: 0.026 poundsType: StraightMaterial: PlasticMatches:401634273467Alternative items:Below are other options that may meet your needs.Screw 1/4-20 x 2 1/4 socket cap stainless steel$2.42999-1839May fit on these models - select model...
    $10.02
  • OEM
    20950 - Straight plastic fitting (Tennant Industrial) 275-8703

    Straight plastic fitting (Tennant Industrial) 275-8703

    SKU: 275-8703
    $7.01
    Specifications:Weight: 0.009 poundsType: StraightMaterial: PlasticMatches:209504039130May fit on these models - select model and diagram to confirmTennant 5680Tennant T7AMRNobles SS5Tennant T300Tennant T7Tennant T5Nobles SPEED SCRUB RIDERTennant T5...
    $7.01
  • OEM
    1018505 - Horn 275-8062

    Horn 275-8062

    SKU: 275-8062
    $269.56
    Specifications:Weight: 0.3 poundsMatches:1018505175-49133929374035813420826291037230Commonly purchased together:May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Tennant T7AMRNobles SS5Tennant T7Tennant T5Nobles SPEED...
    $269.56
  • OEM
    9008266 - 36V 21a gel battery charger 275-7145

    36V 21a gel battery charger 275-7145

    SKU: 275-7145
    $996.49
    Specifications:Weight: 11.705 poundsMatches:40130179008266May fit on these models - select model and diagram to confirmTennant 5680
    $996.49
  • ships same day
    OEM
    1062741 - Recovery tank cover 275-6284

    Recovery tank cover 275-6284

    SKU: 275-6284
    $31.35
    Specifications:Weight: 0.415 poundsMatches:10627414035177Alternative items:Below are other options that may meet your needs.COVER, TANK, RECVY [5680/5700]$15.62993-2948Commonly purchased together:May fit on these models - select model and diagram to...
    $31.35
  • OEM
    4042480 - Snap switch 275-6120

    Snap switch 275-6120

    SKU: 275-6120
    $40.04
    Specifications:Weight: 0.051 poundsMatches:1045175404248091093700Commonly purchased together:May fit on these models - select model and diagram to confirmTennant 5680Tennant 5700 SERIES
    $40.04
  • OEM
    1041030 - Battery terminal cover (black) 275-5948

    Battery terminal cover (black) 275-5948

    SKU: 275-5948
    $4.58
    Specifications:Length: 2.5 in Width: 1.35 in Height: 0.48 in Weight: 0.001 poundsMatches:10410304044457May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Nobles SS5Tennant T300Tennant T7Tennant T5Tennant 1610Nobles...
    $4.58
  • OEM
    1030441 - Check valve (brown) (OBSOLETE) 275-5930

    Check valve (brown) (OBSOLETE) 275-5930

    SKU: 275-5930
    Call for availability
    Specifications:Weight: 0.005 poundsMatches:1030441May fit on these models - select model and diagram to confirmTennant 5680Tennant T3Nobles SS5Tennant T7Tennant T5Nobles SPEED SCRUB RIDERNobles SS3Tennant T5 ETennant T16Tennant T3 PLUSTennant 7100Tennant...
    $21.78
