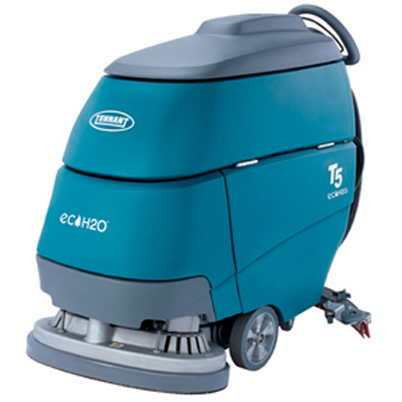

TENNANT T5

TENNANT T5 The TENNANT T5 is a battery powered walk behind auto scrubber. This unit has fully hygienic tanks that make cleanout easy. The TENNANT T5 has easy to use controls for operators of all skill levels. The polyurethane body is durable and built to withstand the toughest jobs.

Cleaning paths: 24 inch (60 cm), 28 inch (70 cm), 32 inch (80 cm)
Solution tank: 22.5 gal (85 L)
Recovery tank: 27 gal (102 L)
Vacuum motor: .85 HP, 3 stage
Machine voltage: 24V
Sound level (operators ear): 67 dBA
Product lenght: 52.9 inch (134 cm), 55.7 inch (141 cm), 58.4 inch (148 cm)
Product width: 35.7 inch (91 cm), 41.3 inch (105 cm), 46.6 inch (118 cm)
Product height: 44 inch (112 cm)
Product weight (w/o batteries): 316 lb (143 kg), 365 lb (152 kg), 377 lb (158 kg)

TENNANT T5 Parts and Support

The TENNANT T5 is a battery powered walk behind auto scrubber. This unit has fully hygienic tanks that make cleanout easy. The TENNANT T5 has easy to use controls for operators of all skill levels. The polyurethane body is durable and built to withstand the toughest jobs.

Cleaning paths: 24 inch (60 cm), 28 inch (70 cm), 32 inch (80 cm)
Solution tank: 22.5 gal (85 L)
Recovery tank: 27 gal (102 L)
Vacuum motor: .85 HP, 3 stage
Machine voltage: 24V
Sound level (operators ear): 67 dBA
Product lenght: 52.9 inch (134 cm), 55.7 inch (141 cm), 58.4 inch (148 cm)
Product width: 35.7 inch (91 cm), 41.3 inch (105 cm), 46.6 inch (118 cm)
Product height: 44 inch (112 cm)
Product weight (w/o batteries): 316 lb (143 kg), 365 lb (152 kg), 377 lb (158 kg)

Parts

  • ships same day
    32 inch (800mm) squeegee blade retainer 275-1575

    32 inch (800mm) squeegee blade retainer 275-1575

    $26.51
    Specifications:Weight: 0.8 POUNDSMatches:1024970Commonly purchased together:Solution fill screen assembly 175-4220$15.07Solution fill port cap 175-7825$2.97Hose bracket ...
  • ships same day
    Hose bracket 175-4772

    Hose bracket 175-4772

    $2.97
    Commonly purchased together:Vacuum hose with short cuffs 991-5139$25.04Battery jumper cable - ring type (red) 998-0010$11.9724V solution solenoid valve assembly 175-7884$102...
  • ships same day
    Hinge 275-1362

    Hinge 275-1362

    $21.50
    Matches:1021246Commonly purchased together:12V 105Ah wet battery (SNSR) 162-0011$172.16Battery jumper cable - ring type (red) 998-0010$11.97Squeegee blade 20 inch linatex rear (red) ...
  • ships same day
    see diagram for compatibility
    Latch with keeper 175-3369

    Latch with keeper 175-3369

    $28.00
    Alternative items:Below are other options that may meet your needs.LATCH, BRUSH COVER 56462316$18.67993-0271Rubber draw latch with keeper$25.91991-8561Commonly purchased together:Dust control skirt 175-9010$26...
  • ships same day
    Idler plug shaft 175-2476

    Idler plug shaft 175-2476

    $45.76
    Commonly purchased together:Brush idler plug 175-2478$17.49Roll pin 175-2477$1.58Retaining ring 175-2472$1.58Bolt...
  • ships same day
    Foam filled wheel 175-3652

    Foam filled wheel 175-3652

    $131.62
    Commonly purchased together:In-line screen filter assembly 175-9025$15.40Front and rear housing assembly 175-7990$437.14Swivel caster wheel 175-7953$15.073/8...
  • ships same day
    see diagram for compatibility
    Pad centering device 275-6264

    Pad centering device 275-6264

    $29.37
    NON-OEM options is 991-2206.Matches:278-0202370095Alternative items:Below are other options that may meet your needs.Center-Lok 3 pad holder$22.00991-2206Lock PAD CENTER SNAP,TWO STEP$11.97993-0020Commonly purchased together:Drain hose assembly 1 1/2 x...
  • ships same day
    see diagram for compatibility
    Bumper wheel 991-8570

    Bumper wheel 991-8570

    $2.44
    Matches:101056086858060Alternative items:Below are other options that may meet your needs.Non-marking bumper wheel$1.76993-2796Commonly purchased together:Battery jumper cable - ring type (red) 998-0010$11.97Vacuum hose with short...
  • see diagram for compatibility
    ships same day
    Star knob 175-7954

    Star knob 175-7954

    $3.70
    Commonly purchased together:Battery jumper cable - ring type (red) 998-0010$11.97Squeegee blade 20 inch linatex front 175-7958$13.42Swivel caster wheel 991-8581$9...
  • ships same day
    see diagram for compatibility
    Brush drive hub (disk) 275-1477

    Brush drive hub (disk) 275-1477

    $83.98
    Specifications:Weight: 0.979 POUNDSMatches:10225501071637Commonly purchased together:32 inch (800mm) brush head housing 275-1483$613.2532 inch (800mm) bumper skirt assembly 275-1482$197.56Squeegee blade 32...
  • ships same day
    Electronics cover 275-1423

    Electronics cover 275-1423

    $73.37
    Specifications:Weight: 0.948 POUNDSMatches:1022820Commonly purchased together:Screw M6-1 x 16mm truss head slotted stainless steel 999-1084$2.1024V actuator 275-1514$294.31Squeegee blade 14 1/4 inch ...
  • see diagram for compatibility
    ships same day
    Upper instrument panel kit 275-1412

    Upper instrument panel kit 275-1412

    $167.80
    Specifications:Weight: 0.434 POUNDSMatches:9002570Commonly purchased together:Squeegee blade 28 inch linatex rear 994-0090$20.15VACUUM MOTOR KIT (T5/SS5) 993-2838$180.40GASKET, 20/24 VAC MOTOR ...
  • ships same day
    see diagram for compatibility
    Safety shut-off switch kit 275-1416

    Safety shut-off switch kit 275-1416

    $37.56
    Matches:1011735175-1219630097Commonly purchased together:Vacuum hose with short cuffs 175-7966$30.47Logic circuit board kit 275-6272$763.62Paper vacuum bags (pkg of 10) ...
  • ships same day
    Squeegee pivot weldment bracket 275-1544

    Squeegee pivot weldment bracket 275-1544

    $132.11
    Specifications:Weight: 3.5 POUNDSMatches:1020974Commonly purchased together:Squeegee bracket replacement kit 275-1545$47.58Squeegee blade 28 inch linatex front 275-1565$21.84Squeegee lift cable ...
  • ships same day
    see diagram for compatibility
    Ball bearing 175-2471

    Ball bearing 175-2471

    $12.98
    Commonly purchased together:Drive belt 275-4735$23.71Drive plug 175-8819$34.32Spacer 175-8820$9...
  • see diagram for compatibility
    ships same day
    Ball joint 175-7860

    Ball joint 175-7860

    $14.96
    Matches:1012747Commonly purchased together:Squeegee lift cable 175-7859$29.76Nut M6-1 hex stainless steel 999-1308$0.90Nut M6-1 nylon insert lock stainless steel ...
