NSS WRANGLER 3330

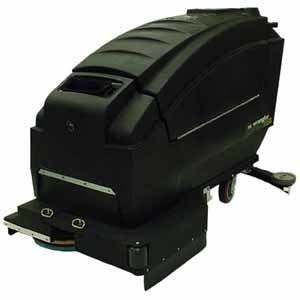

NSS WRANGLER 3330 The Wrangler 3330 is a high performance battery auto scrubber. It features a 36 volt system, on board battery charger, 33 gallon recovery tank, 30 gallon solution tank, curved squeegee, and a 33 inch cleaning path. This rugged maneuverable automatic scrubber is unsurpassed for cleaning power, productivity, and dependability. It’s ideal for cleaning large areas and cleans up to 32,000 square feet per hour.

Cleaning path: 33 inch (84 cm)
Solution tank: 30 gallon (114 L)
Recovery tank: 33 gallon (125 L)
Vacuum motor: 36V, 3 stage, 0.75 HP
Brush motors: two 0.75 HP
Length: 66 inch (168 cm)
Width: 25.5 inch (65 cm)
Height: 42 inch (107 cm)
Weight: 1,110 lbs (504 kg)

NSS WRANGLER 3330 Parts and Support

The Wrangler 3330 is a high performance battery auto scrubber. It features a 36 volt system, on board battery charger, 33 gallon recovery tank, 30 gallon solution tank, curved squeegee, and a 33 inch cleaning path. This rugged maneuverable automatic scrubber is unsurpassed for cleaning power, productivity, and dependability. It’s ideal for cleaning large areas and cleans up to 32,000 square feet per hour.

Cleaning path: 33 inch (84 cm)
Solution tank: 30 gallon (114 L)
Recovery tank: 33 gallon (125 L)
Vacuum motor: 36V, 3 stage, 0.75 HP
Brush motors: two 0.75 HP
Length: 66 inch (168 cm)
Width: 25.5 inch (65 cm)
Height: 42 inch (107 cm)
Weight: 1,110 lbs (504 kg)

Parts

  • ships same day
    24V & 36V fuse assembly 162-5001

    24V & 36V fuse assembly 162-5001

    $38.50
    If your fuse is blown, there is a 99% chance that you will need a new Heat sink, part number 162-5006.Specifications:Weight: 0.087...
  • ships same day
    Solenoid valve 164-2495

    Solenoid valve 164-2495

    $110.94
    Specifications:Weight: 0.4 POUNDSMatches:23-718-123-718123-9-718-123-9-71812371812397181991-0109Commonly purchased together:Washer 1/4 split lock plain finish 999-0060$0.90Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated ...
  • ships same day
    Solenoid valve 164-1191

    Solenoid valve 164-1191

    $156.11
    Specifications:Weight: 0.4 POUNDSMatches:76-052-176-052176-9-052-176-9-05217605217690521991-0110VP11-8PX8SF6L5Commonly purchased together:Squeegee blade 46 inch curved gum rubber rear (tan) 164-1127$17.09SB50 50amp charger plug with pins (gray) ...
  • see diagram for compatibility
    ships same day
    Switch 164-0015

    Switch 164-0015

    $25.19
    Specifications:Weight: 0.037 POUNDSMatches:03-343-103-343103-9-343-103-9-34310334310393431164-0765164-1847303-905053-021-153-021153-9-021-153-9-02115302115390211Commonly purchased together:17 1/2 amp circuit breaker ...
  • ships same day
    see diagram for compatibility
    Squeegee blade 46 inch curved gum rubber rear (tan) 164-1127

    Squeegee blade 46 inch curved gum rubber rear (tan) 164-1127

    $17.09
    Upgraded curved squeegee assembly. NSS no longer offers this blade, this is a NON-OEM replacement.Specifications:Weight: 0.687 POUNDSMatches:26-383-126-383126-9-383-126-9-383126383126938318.667-031.0994-0008Q1012ATT-46.6-2AAlternative items:Below are...
  • ships same day
    see diagram for compatibility
    36V Curtis speed control 164-0070

    36V Curtis speed control 164-0070

    $605.50
    This is for after serial number 18N#######. If your battery meter is a blinking light, you probably need the dart board, 164-0818. If you have an actual battery meter, this is the part you need.Specifications:Weight: 0.525...
  • ships same day
    Drive hub 164-0134

    Drive hub 164-0134

    $129.36
    Specifications:Weight: 0.362 POUNDSMatches:26-805-226-805226-9-805-226-9-80522680522698052Commonly purchased together:16 inch value daily cleaning brush assembly 996-3068$133.00Pad driver ...
  • ships same day
    see diagram for compatibility
    Tank lid assembly 164-0202

    Tank lid assembly 164-0202

    $67.54
    Specifications:Weight: 0.8 POUNDSMatches:100102175-1996175-2645183-0554190-90181912926-9-08812690881Commonly purchased together:Gasket 164-0206$5.94Tube adaptor ...
  • ships same day
    see diagram for compatibility
    Recovery tank drain hose 164-0210

    Recovery tank drain hose 164-0210

    $63.52
    Specifications:Weight: 0.825 POUNDSMatches:26-112-126-112126-9-112-126-9-11212611212691121Commonly purchased together:Squeegee vacuum hose with cuffs 164-0089$39.55Squeegee blade 39 inch gum rubber rear (tan) ...
  • ships same day
    see diagram for compatibility
    36V drive motor 164-0172

    36V drive motor 164-0172

    $1,046.04
    Specifications:Weight: 31 POUNDSMatches:27-010-127-010127-9-010-127-9-01012701012790101991-5114Alternative items:Below are other options that may meet your needs.36V drive motor$666.92991-5114Drive motor$572.00993-0194Commonly purchased together:Relay...
  • ships same day
    see diagram for compatibility
    Inline canister strainer 164-9126

    Inline canister strainer 164-9126

    $32.62
    Alternative items:Below are other options that may meet your needs.Inline canister strainer$29.30991-6024Inline canister strainer$21.12993-2791Commonly purchased together:Vacuum motor intake filter 164-0199$9.90Squeegee...
  • ships same day
    see diagram for compatibility
    SB50 50amp charger plug with pins (gray) 991-2105

    SB50 50amp charger plug with pins (gray) 991-2105

    $8.14
    Specifications:Weight: 0.037 POUNDSMatches:069762379130155164-0006170-0036170-6851175-0462175-25312488144-9-1901449190163197-70-000747006045034328.663-408.086634080911185991-8557P-2P050GP1VF81306GVF81723GAlternative items:Below are other options that may...
  • ships same day
    36V drive controller 164-7403

    36V drive controller 164-7403

    $461.94
    Commonly purchased together:24V onboard battery charger (AGM/wet capable) 275-4799$567.66Caster with insert 164-2214$50.99Squeegee vacuum hose with cuffs 164-0089$39...
  • see diagram for compatibility
    Drain plug 164-0043

    Drain plug 164-0043

    $31.46
    Specifications:Weight: 0.287 POUNDSMatches:27-562-127-562127-9-562-127-9-5621275621279562186601910991-5113Alternative items:Below are other options that may meet your needs.Drain plug$17.54991-5113DRAIN PLUG 1 1/2"621324$13.90993-0097Commonly purchased...
  • ships same day
    see diagram for compatibility
    5K potentiometer 991-9024

    5K potentiometer 991-9024

    $20.97
    5K potentiometer fits all variants of NSS Wrangler, Champ , Charger, Nilfisk-Advance Convertamatic, Advenger, AquaRide, Hydro, Whirlamatic, Advolution 2710, Alto-Clarke Encore L20, Fusion 20I, Image 26E, Windsor Presto Deluxe, Tennant 5680, 5700, 1520,...
  • ships same day
    Pad driver 996-0674

    Pad driver 996-0674

    $82.32
    Specifications:Weight: 4.7 POUNDSMatches:164-013933-9-08913390891782716 W/ L800T996-1561Alternative items:Below are other options that may meet your needs.PAD DRIVER 15"$54.12993-0116Commonly purchased together:Squeegee blade 43 inch curved gum rubber...
