Chassis Construction:Rotationally-molded polyethylene
Casters:(2) 4 in/10 cm diameter x 1-1/2 in 3.8 cm
Drive Wheel:(2) 8 in /20 cm diameter x 2 in/ 5 cm
Dimensions
Product Height:39 in /99.06 cm
Product Length:50 in /127 cm
Product Width:26 in /66.04 cm
Product Weight:375 lb w/o batteries /170.1 kg
600 lb with batteries /272.16 kg
Productivity
Cleaning Rate Per Hour:24,000 ft2/ 2229.6 m2 per hour
(excludes dump/fill cycles)
Cleaning Width:23-1/8 in / 58.73 cm
Battery System
Battery Amp Hour Rating:215 A
Battery Count:2
Battery Description:12 V, deep cycle lead acid batteries with rope
handles
Battery Run Time Per Charge: Up to 4-3/4 hours
Charging Unit Description: 20 A automatic charge
Brush/Pad Drive System
Brush/Pad Diameter:(2) 12 in / 30.48 cm
Motor Amps:15 A
Motor Hp:.75 hp
Motor Volts:24 V
Motor RPM:220 rpm
Brush/Pad Pressure: Variable; 40 - 150 lb / 18 - 68 kg
Ten Foot Rating:70 dBa
Five Foot Rating:73 dBa
Operator’s Position Rating:75 dBa
Solution Delivery System
Max Sol. Flow Rate- Conventional
Sol. Flow Rate - FaST™
Solution Capacity:75 gpm/ .284 L/min .15 gpm / .04 L/min 17 gal / 64.35 L

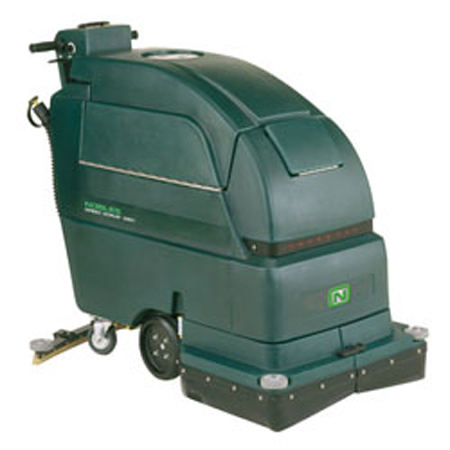

Nobles SPEEDSCRUB 2401 Parts and Support
chassis/body construction
chassis construction:rotationally-molded polyethylene
casters:(2) 4 in/10 cm diameter x 1-1/2 in 3.8 cm
drive wheel:(2) 8 in /20 cm diameter x 2 in/ 5 cm
dimensions
product height:39 in /99.06 cm
product length:50 in /127 cm
product width:26 in /66.04 cm
product weight:375 lb w/o batteries /170.1 kg
600 lb with batteries /272.16 kg
productivity
cleaning rate per hour:24,000 ft2/ 2229.6 m2 per hour
(excludes dump/fill cycles)
cleaning width:23-1/8 in / 58.73 cm
battery system
battery amp hour rating:215 a
battery count:2
battery description:12 v, deep cycle lead acid batteries with rope
handles
battery run time per charge: up to 4-3/4 hours
charging unit description: 20 a automatic charge
brush/pad drive system
brush/pad diameter:(2) 12 in / 30.48 cm
motor amps:15 a
motor hp:.75 hp
motor volts:24 v
motor rpm:220 rpm
brush/pad pressure: variable; 40 - 150 lb / 18 - 68 kg
ten foot rating:70 dba
five foot rating:73 dba
operator’s position rating:75 dba
solution delivery system
max sol. flow rate- conventional
sol. flow rate - fast™
solution capacity:75 gpm/ .284 l/min .15 gpm / .04 l/min 17 gal / 64.35 l
chassis construction:rotationally-molded polyethylene
casters:(2) 4 in/10 cm diameter x 1-1/2 in 3.8 cm
drive wheel:(2) 8 in /20 cm diameter x 2 in/ 5 cm
dimensions
product height:39 in /99.06 cm
product length:50 in /127 cm
product width:26 in /66.04 cm
product weight:375 lb w/o batteries /170.1 kg
600 lb with batteries /272.16 kg
productivity
cleaning rate per hour:24,000 ft2/ 2229.6 m2 per hour
(excludes dump/fill cycles)
cleaning width:23-1/8 in / 58.73 cm
battery system
battery amp hour rating:215 a
battery count:2
battery description:12 v, deep cycle lead acid batteries with rope
handles
battery run time per charge: up to 4-3/4 hours
charging unit description: 20 a automatic charge
brush/pad drive system
brush/pad diameter:(2) 12 in / 30.48 cm
motor amps:15 a
motor hp:.75 hp
motor volts:24 v
motor rpm:220 rpm
brush/pad pressure: variable; 40 - 150 lb / 18 - 68 kg
ten foot rating:70 dba
five foot rating:73 dba
operator’s position rating:75 dba
solution delivery system
max sol. flow rate- conventional
sol. flow rate - fast™
solution capacity:75 gpm/ .284 l/min .15 gpm / .04 l/min 17 gal / 64.35 l
