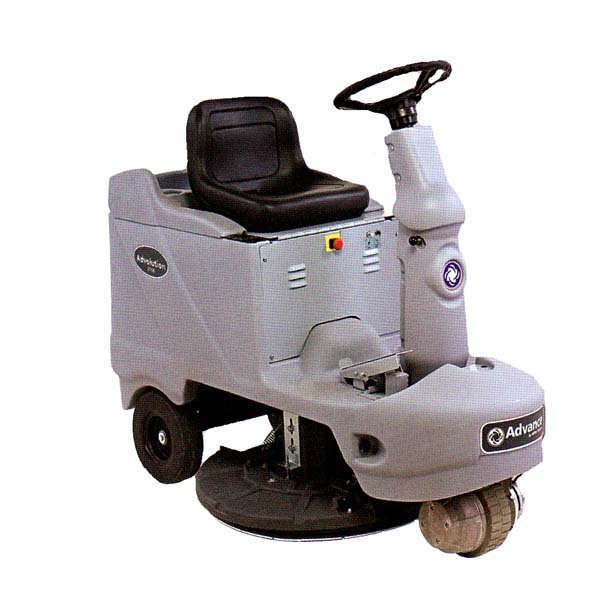

The Advolution 2710 rider burnisher makes the tedious task of burnishing clean, quick, and comfortable with superior results. Battery-operated, with a maneuverable front steering system, the Advolution 2710 eliminates the emissions and noise associated with propane burnishers.

The Advolution 2710 rider burnisher provides maximum productivity with its extended battery run-time. On a single battery charge the 2710 is capable of covering a maximum of over 135,000 ft2 (12,500 m2). Average productivity of the 2710 is in excess of 30,000 ft2 (2,800 m2). The machine will automatically monitor and control the amount of pad pressure on the floor to ensure the most superior gloss level possible. The floating burnishing head coupled with a flexible pad driver follows uneven floor contours to provide a consistent shine.

Operators of the Advolution 2710 rider burnisher can expect uncompromised safety. Open sight lines in front of the machine create a safe and comfortable ride for the operator. Automatic safeguards eliminate unmanned start-ups, which can lead to damaged floor finish. A safety switch prevents accidental pad start-up in the tilt-up position. Passive dust control is standard on the Advolution 2710 rider burnisher, which reduces the need for dust mopping. An active dust control kit is available as an option for environments that require a higher degree filtration.

Pad Motor 3.25 hp
Pad Driver 27 in (68.6 cm) flexible pad driver with 3.5 in (9 cm) centering device.
Pad Motor Speed No Load 1,760 RPM / Under load 1,500 RPM
Max Productivity Per hour: 41,580 ft2/hr (3,863 m2/hr)
at 3.5 mph (5.6 km/hr) Per battery charge: 137,214 ft² (12,748 m²)
Pad Access Pivoting burnishing head for easy pad access; safety switch prevents
accidental startup when burnishing head is tilted up.
Pad Pressure Adjustment Variable between 3 settings; 50-75 lb
Electronic pad pressure system automatically controls consistency of
pad pressure to maximize performance based on the setting selected.
Body Construction All steel chassis and rotational molded body. Steel burnishing head linkage
and steering column.
Dust Control Passive dust control standard.
Drive System 1 hp, 700 W permanent magnet motor with gear transmission and non-marking wheel.
0-4.5 mph (0-7.2 km/hr) transport; 0-3.5 mph (0-5.6 km/hr) burnishing.
Automatic electromechanical parking brake.
Wheels Two 12 in (30.5 cm) diameter non-marking rear wheels.
Power Source 6 - 6V DC / 420 Ah wet or 312 Ah AGM batteries
Operator Interface Tilt steering and adjustable seat with deadman safety switch.
Sound Level 69 dB A @ operator position
Minimum Aisle Turn Width 72 inches (183 cm)
Gradeability: Cleaning 12.3% (7°)
Dimensions Length 65.5 inches (166 cm) Height 54 inches (137 cm) Width 32 inches (81 cm)
Gross Weight Without batteries 484 lb (220 kg) / With batteries 1,379 lbs / 625 kg
