SS5

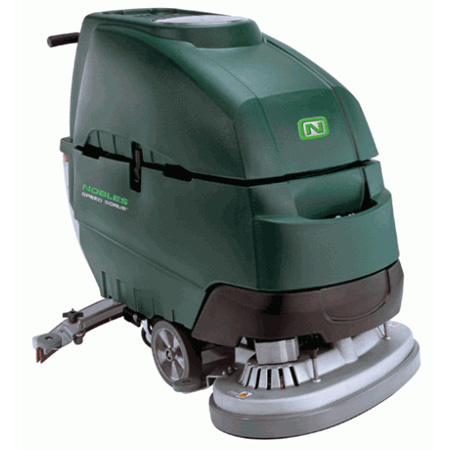

SS5 The Nobles SS5 is a battery powered walk behind floor scrubber. It features rugged, non-corroding cast aluminum scrub decks and squeegee frames. This machine is easy to use with simple one-button Quick-Train controls and no-tool squeegee replacement; making this unit ideal for all operator skill levels. The Nobles SS5 has a low noise level that provides the flexibility to use during all business hours and locations. This unit is equipped with FaST, Foam Scrubbing Technology, which means there is no chemical residue, less waste, and provides higher tractions which reduces the risk of skipping and falling.

Scrub motors: (2) 0.75 HP (0.56 kW)
Scrub motor speed: 220 RPM
Brush/pad down pressure: Up to 120 lb (54 kg)
Motor: 3 stage, 0.85 HP (0.640 kW)
Machine voltage: 24V
Solution tank: 22.5 gal (85 L)
Recovery tank: 27 gal (102 L)
Sound level: 67 dBA

SS5 Parts and Support

The Nobles SS5 is a battery powered walk behind floor scrubber. It features rugged, non-corroding cast aluminum scrub decks and squeegee frames. This machine is easy to use with simple one-button Quick-Train controls and no-tool squeegee replacement; making this unit ideal for all operator skill levels. The Nobles SS5 has a low noise level that provides the flexibility to use during all business hours and locations. This unit is equipped with FaST, Foam Scrubbing Technology, which means there is no chemical residue, less waste, and provides higher tractions which reduces the risk of skipping and falling.

Scrub motors: (2) 0.75 HP (0.56 kW)
Scrub motor speed: 220 RPM
Brush/pad down pressure: Up to 120 lb (54 kg)
Motor: 3 stage, 0.85 HP (0.640 kW)
Machine voltage: 24V
Solution tank: 22.5 gal (85 L)
Recovery tank: 27 gal (102 L)
Sound level: 67 dBA

Parts

  • ships same day
    OEM
    16 inch pad driver assembly 275-4783

    16 inch pad driver assembly 275-4783

    $289.68
    Specifications:Weight: 6.895 POUNDSMatches:1220222399250Alternative items:Below are other options that may meet your needs.16 inch pad driver assembly$63.36993-274916 inch value pad driver assembly$50.50996-3125Commonly purchased together:Battery insert ...
    Check compatibility
  • ships same day
    OEM
    Recovery drain hose assembly 175-7785

    Recovery drain hose assembly 175-7785

    $64.13
    Specifications:Weight: 1 POUNDSMatches:10173801043538991-5138Alternative items:Below are other options that may meet your needs.27 inch recovery drain hose assembly$34.80991-5138DRAIN HOSE, STRETCH 1.5"X30" W/DRAIN CAP$25.08993-0672Commonly purchased...
    Check compatibility
  • ships same day
    Non-OEM
    24V 3 stage vacuum motor tangential 991-1210

    24V 3 stage vacuum motor tangential 991-1210

    $122.10
    This high quality, low cost vacuum motor fits on the following models; NSS Wrangler 26, 2625, 2016, 20 and 20B Alto-Clarke Encore S and L series 20, 24 and 26, Vision 20BT, Vision V, Vision 17, 20, 21 Niflisk Aquaplus, Adphibian, Convertamatic 24, 26,...
    Check compatibility
  • ships same day
    OEM
    Wheel with taper 275-1449

    Wheel with taper 275-1449

    $114.68
    Specifications:Weight: 3.4 POUNDSMatches:102068812187531223583Alternative items:Below are other options that may meet your needs.Wheel with taper$85.45991-7142Wheel with taper$61.58993-4005Commonly purchased together:Vacuum hose with short cuffs ...
    Check compatibility
  • ships same day
    Non-OEM
    Vacuum hose with short cuffs 991-5139

    Vacuum hose with short cuffs 991-5139

    $25.04
    Matches:1014026175-79668.809-314.0880931409.848-207.098482070Alternative items:Below are other options that may meet your needs.(k) VACUUM HOSE 57" BLK W/CUFFS$18.04993-2380Commonly purchased together:27 inch recovery drain hose assembly ...
    Check compatibility
  • ships same day
    OEM
    Squeegee blade retainer assembly 275-1579

    Squeegee blade retainer assembly 275-1579

    $161.65
    Specifications:Weight: 1.4 POUNDSMatches:1023400Commonly purchased together:Screw 3/8 x 1 1/4 shoulder 175-3719$4.36Nut 5/16-18 hex nylon insert lock zinc plated 999-0211$0.90Washer 3/8 x 1 flat stainless...
    Check compatibility
  • ships same day
    OEM
    Squeegee strap assembly 175-7964

    Squeegee strap assembly 175-7964

    $123.75
    Matches:1013933Commonly purchased together:Squeegee blade 20 inch linatex front 175-7958$13.42Squeegee blade 20 inch linatex rear (red) 175-7961$14.25Recovery drain hose assembly ...
    Check compatibility
  • ships same day
    OEM
    24V 3 stage vacuum motor kit 275-1376

    24V 3 stage vacuum motor kit 275-1376

    $300.14
    Looking for a cheaper option? Check out our genuine Ametek-Lamb replacement vacuum motor, part number 991-1210.Specifications:Weight: 7 POUNDSMatches:116515-06116515-139002562991-1210-PAlternative items:Below are other options that may meet your needs...
    Check compatibility
  • ships same day
    OEM
    Shut-off float 175-1804

    Shut-off float 175-1804

    $52.96
    Specifications:Weight: 0.225 POUNDSMatches:630052Alternative items:Below are other options that may meet your needs.FLOAT, 2701/3301$24.64993-0404Commonly purchased together:Battery jumper cable - ring type (red) 998-0010$11.97Vacuum...
  • ships same day
    OEM
    Squeegee blade 20 inch linatex rear (red) 175-7961

    Squeegee blade 20 inch linatex rear (red) 175-7961

    $14.24
    For 20 inch (500mm) squeegee assemblySpecifications:Weight: 0.413 POUNDSMatches:1011456Alternative items:Below are other options that may meet your needs.SQUEEGE BLADE REAR$9.68993-0670Squeegee blade 20 inch linatex rear (red)$31.35994-0078Commonly...
    Check compatibility
  • ships same day
    OEM
    Vacuum hose with short cuffs 175-7966

    Vacuum hose with short cuffs 175-7966

    $30.47
    Specifications:Weight: 1.175 POUNDSMatches:10140261207882160630175-6602175-6632605041991-5139Alternative items:Below are other options that may meet your needs.(k) VACUUM HOSE 57" BLK W/CUFFS$18.04993-2380Vacuum hose with short cuffs$25...
    Check compatibility
  • ships same day
    OEM
    Squeegee blade 20 inch linatex front 175-7958

    Squeegee blade 20 inch linatex front 175-7958

    $13.42
    Specifications:Weight: 0.225 POUNDSMatches:1011232Alternative items:Below are other options that may meet your needs.Squeegee blade 20 inch linatex front$10.80994-0098Squeegee blade 31 inch front gum rubber (red)$8.27993-0668Commonly purchased...
    Check compatibility
  • ships same day
    OEM
    4 inch caster wheel 175-2991                      4 inch caster wheel 175-2991

    4 inch caster wheel 175-2991

    $97.68
    Specifications:Weight: 2.01 POUNDSMatches:101038810269510296951049048275-1445275-4728275-9102375-1656612056630002N1049048Commonly purchased together:24V solution solenoid valve assembly 175-7884$102.96In-line screen filter assembly...
    Check compatibility
  • ships same day
    Non-OEM
    6V 224Ah AGM battery (Group GC2) 162-0043

    6V 224Ah AGM battery (Group GC2) 162-0043

    $309.09
    Do you also need battery jumper cables? If so, add part number 998-0010.Specifications:Length: 10.25 IN Width: 7.06 IN Height: 10.94 IN Voltage: 6Chemical Makeup: AGMMatches:224-6292-00536CEA2206CRV220AGM 2000Commonly purchased together:VAC MOTOR...
    Check compatibility
  • ships same day
    OEM
    Squeegee bracket replacement kit 275-1545

    Squeegee bracket replacement kit 275-1545

    $47.58
    This kit comes with the squeegee bracket, all new hardware, bushings, and assembly instructions.Matches:102342110242151038515275-4985Commonly purchased together:Actuator push switch 175-0084$9.57Battery insert ...
    Check compatibility
