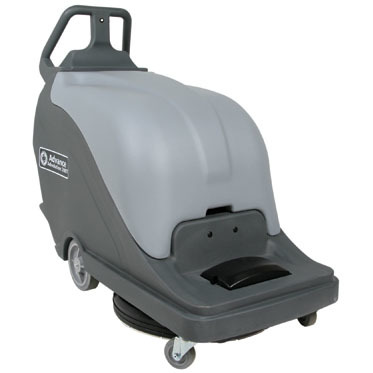

The Advolution walk-behind battery burnisher delivers consistent and even polishing with self-regulating pad pressure and a floating, flexible pad driver. This eliminates the need for operators to make adjustments to the pad pressure. The Advolution is available with a 20 or 24 inch burnishing path with either pad assit or traction drive.
Choose from either 195 Ah wet batteries for dependable long run time, or maintenance-free 234 Ah AGM gel type batteries. The onboard battery charger allows for convenient charging at any 120 volt outlet so that operators don’t have to return the machine to a storage area.
Safety isn’t sacrificed for price and performance, either. An angle-activated safety switch keeps the machine from starting when tipped back in the pad change position. Superior mobility and line of sight mean the Advolution battery burnisher is just as safe when running.
The Advolution battery burnisher is easier to use than any other burnisher in the market – just turn it on and go. The burnishing deck automatically lowers to the floor when the burnisher motor turns on, and returns to a raised position when the motor is turned off. Simple controls minimize training time and expense.
Burnishing Swath / Pad Diameter 20 in (50.8 cm)
Power 36 V, (3) 12 V batt.
Traction Pad Assist
Low Battery Protection ALL MODELS
Onboard Charger 36 V, 25 A DC, 85 - 265 V / 45 - 65 Hz AC – ALL MODELS
Pad Motor 2.5 hp (1.9 kW)
Transaxle Traction Motor .5 hp (.37 kW) – ALL MODELS
Pad RPM (On the Floor) 2,000 rpm
Pad Pressure Self Regulation to 30 lb (13 kg) – ALL MODELS
Sound Level 68 dB A
Drive Wheels 1.62 in x 8 in (4 cm x 20 cm) – ALL MODELS
Polishing Rate (maximum) 24,000 ft2/ hr (7,315 m2/ hr)
Polishing Rate (practical) 17,600 ft2/ hr (5,365 m2/ hr) – 20B and 20BT
Length 50 in (127 cm)
Width 23 in (58 cm)
Height 41.25 in (105 cm)
Nilfisk-Advance ADVOLUTION 20B Parts and Support
when the job calls for restoring your floor’s gloss, the affordable advance advolution™ battery burnisher outshines even its contemporary new look.
the advolution walk-behind battery burnisher delivers consistent and even polishing with self-regulating pad pressure and a floating, flexible pad driver. this eliminates the need for operators to make adjustments to the pad pressure. the advolution is available with a 20 or 24 inch burnishing path with either pad assit or traction drive.
choose from either 195 ah wet batteries for dependable long run time, or maintenance-free 234 ah agm gel type batteries. the onboard battery charger allows for convenient charging at any 120 volt outlet so that operators don’t have to return the machine to a storage area.
safety isn’t sacrificed for price and performance, either. an angle-activated safety switch keeps the machine from starting when tipped back in the pad change position. superior mobility and line of sight mean the advolution battery burnisher is just as safe when running.
the advolution battery burnisher is easier to use than any other burnisher in the market – just turn it on and go. the burnishing deck automatically lowers to the floor when the burnisher motor turns on, and returns to a raised position when the motor is turned off. simple controls minimize training time and expense.
burnishing swath / pad diameter 20 in (50.8 cm)
power 36 v, (3) 12 v batt.
traction pad assist
low battery protection all models
onboard charger 36 v, 25 a dc, 85 - 265 v / 45 - 65 hz ac – all models
pad motor 2.5 hp (1.9 kw)
transaxle traction motor .5 hp (.37 kw) – all models
pad rpm (on the floor) 2,000 rpm
pad pressure self regulation to 30 lb (13 kg) – all models
sound level 68 db a
drive wheels 1.62 in x 8 in (4 cm x 20 cm) – all models
polishing rate (maximum) 24,000 ft2/ hr (7,315 m2/ hr)
polishing rate (practical) 17,600 ft2/ hr (5,365 m2/ hr) – 20b and 20bt
length 50 in (127 cm)
width 23 in (58 cm)
height 41.25 in (105 cm)
the advolution walk-behind battery burnisher delivers consistent and even polishing with self-regulating pad pressure and a floating, flexible pad driver. this eliminates the need for operators to make adjustments to the pad pressure. the advolution is available with a 20 or 24 inch burnishing path with either pad assit or traction drive.
choose from either 195 ah wet batteries for dependable long run time, or maintenance-free 234 ah agm gel type batteries. the onboard battery charger allows for convenient charging at any 120 volt outlet so that operators don’t have to return the machine to a storage area.
safety isn’t sacrificed for price and performance, either. an angle-activated safety switch keeps the machine from starting when tipped back in the pad change position. superior mobility and line of sight mean the advolution battery burnisher is just as safe when running.
the advolution battery burnisher is easier to use than any other burnisher in the market – just turn it on and go. the burnishing deck automatically lowers to the floor when the burnisher motor turns on, and returns to a raised position when the motor is turned off. simple controls minimize training time and expense.
burnishing swath / pad diameter 20 in (50.8 cm)
power 36 v, (3) 12 v batt.
traction pad assist
low battery protection all models
onboard charger 36 v, 25 a dc, 85 - 265 v / 45 - 65 hz ac – all models
pad motor 2.5 hp (1.9 kw)
transaxle traction motor .5 hp (.37 kw) – all models
pad rpm (on the floor) 2,000 rpm
pad pressure self regulation to 30 lb (13 kg) – all models
sound level 68 db a
drive wheels 1.62 in x 8 in (4 cm x 20 cm) – all models
polishing rate (maximum) 24,000 ft2/ hr (7,315 m2/ hr)
polishing rate (practical) 17,600 ft2/ hr (5,365 m2/ hr) – 20b and 20bt
length 50 in (127 cm)
width 23 in (58 cm)
height 41.25 in (105 cm)
