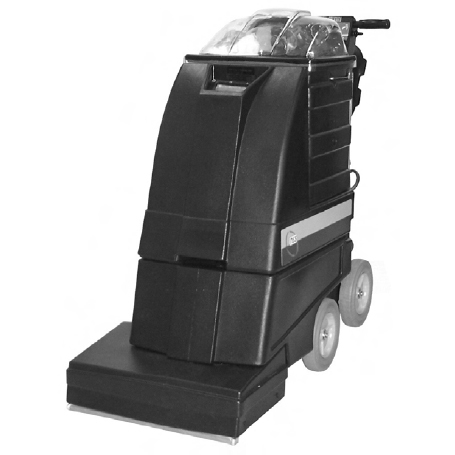

Where productivity is the bottom line, the Stallion 12 SC cleans carpet quickly and efficiently. Top quality construction, remarkable ease of operation, and versatility combine for a machine that consistently outperforms competition.

•The high-speed brush motor and brush guarantee powerful agitation to release deeply embedded soil and grit, extending carpet life.
•Large wheels, adjustable handle, and lightweight construction team up for easy handling and storage.
•A low-flow switch allows water conservation (about 38 percent less water is used) while keeping solution flow at the same great cleaning pressure.
•Four-wheel design for balance and reduced turning radius.
•Patented dual lift-off recovery buckets provide quick and convenient emptying.
•The brush system utilizes fully sealed stainless steel ball bearings for years of trouble-free operation.
•Maintenance is a breeze- just remove two screw and opens up the clamshell design body for quick internal access.

Solution: 12 gal (45.5 l)
Recovery: Dual 6 gal (45.5 l total)
Solution Pump: 100 PSI bypass
Type: Diaphragm type
Watts: 115 (110V) - 126.5 (230V)
Vacuum Motors
Type:Dual, 2-stage tangential
Voltage: 110-120V, 220-240V available
HP: 3.5 HP (2.7 kilowatts)
CFM: 200
Water Lift: 76-in
Current: 120V - 15 amps, 240V - 8 amps
Brush Motor
Type: Permanent magnet
Voltage: 110V - 120V or 220V - 240V
HP:0.167 HP
RPM:2,100
Construction
Tanks: Rotocast polyethylene
Frame:Painted steel
Wheels: Four 8-in (20 cm) non-marking grey tread
Spray Jets: 2 brass
Vacuum Shoe: 18-in (46 cm) corrosive-resistant cast aluminum
Brush
Type: 15.25 (39 cm) nylon bristle, Chevron design
RPM: 2,100
Bearings: Sealed; stainless steel
Sound Level: 77 dBA
Cord
Size: 12-3 SJTW safety yellow with molded plug
Length: 50 ft (15 m)
Accessory Valve: Quick connect attachment; automatic valve actuated
Dimensions
Height: 38 in (96.5)
Length: 48 in (122 cm)
Width: 19 in (48 cm)
Weight
Machine: 120 lbs (54.5 kg)
Shipping: 136 lbs (62 kg)
Shipping Class: 125
Warranty: 3 years limited, 10 years poly parts
